Toyota Camry 2021 Front Radar Static Calibration

Function Description:

The following situations require calibrating radar:

1) There is a fault code "C1A1100 Front radar sensor optical axis misalignment fault" in the front recognition camera system.

Measured models:

2021 Toyota Camry, VIN code: 4T1B61AK********

Operation guide:

1. Access car model selection by reading the VIN (or manual selection).

2. Choose "TOYOTA".

3. Click "OK".

4. Choose 16PIN DLC(Europe and Other).

5. The following models are identified through automatic identification of VIN, select w/Smart Key.

6. Choose "Radar Cruise".

7. Choose w/ EPB.

8. The model information is displayed, click "OK".

9. Click "OK".

10. Choose "ADAS System Selection".

11. Display the list of systems, choose "Front Radar Sensor".

12. Click "OK".

13. Display the list of functions, choose "Special Function".

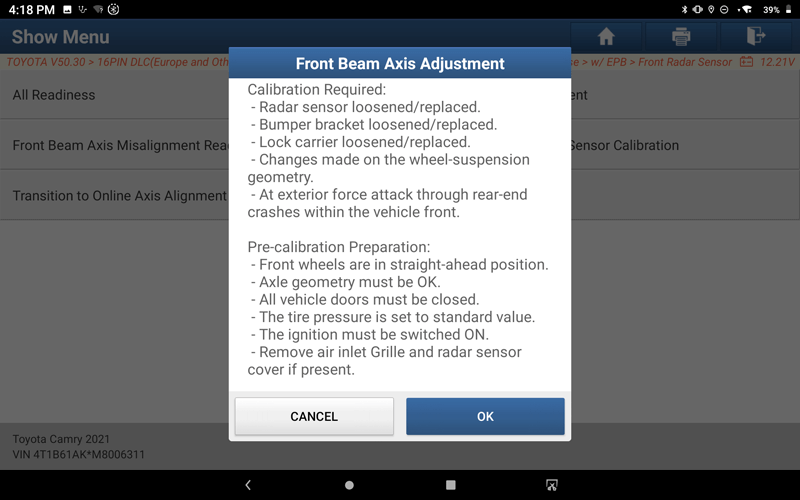

14. Show a list of special features, and choose "Front Beam Axis Adjustment".

15. Click "OK".

16. Follow the prompts, and click "OK" after the operation is complete.

17. Follow the prompts, and click "Next Step" after the operation is complete.

18. Follow the prompts, and click "Next Step" after the operation is complete.

19. Follow the prompts, and click "Next Step" after the operation is complete.

20. Follow the prompts, and click "Next Step" after the operation is complete.

21. Follow the prompts, and click "Next Step" after the operation is complete.

22. Follow the prompts, and click "Calibration" after the operation is complete.

23. Follow the prompts, and click "OK" after the operation is complete.

24. Follow the prompts, and click "OK" after the operation is complete.

25. Calibrating...

26. Front radar static calibration completed successfully.

27. Print the report information after calibration.
