Toyota Camry 2021 Front Radar Dynamic Calibration

Function Description:

The following situations require calibrating radar:

1) Identify the fault code "C1A1100, front radar sensor optical axis misalignment fault" in the identification camera system.

Measured models:  2021 Toyota Camry, VIN code: 4T1B61AK********

Operation guide:

1. Access car model selection by reading the VIN (or manual selection).

2. Choose "TOYOTA".

3. Click "OK".

4. Choose 16PIN DLC(Europe and Other).

5. The following models are identified through automatic identification of VIN, select w/Smart Key.

6. Choose "Radar Cruise".

7. Choose w/ EPB.

8. The model information is displayed, click "OK".

9. Click "OK".

10. Choose "ADAS System Selection".

11. Display the list of systems, choose "Front Radar Sensor".

12. Click "OK".

13. Display the list of functions, choose "Special Function".

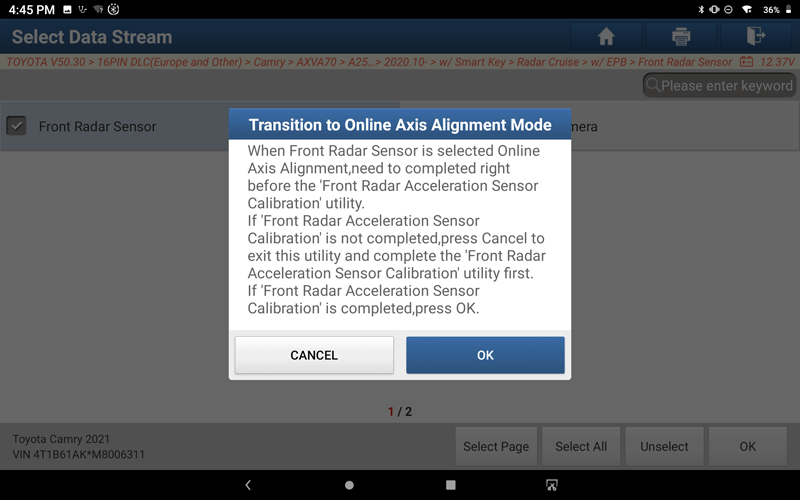

14. Show a list of special features, and choose "Transition to Online Axis Alignment Mode".

15. Click "OK".

16. After confirming the following conditions, click "OK".

17. Click "OK".

18. After selecting "Front Radar Sensor", click "OK".

19. Follow the prompts, and click "OK" after the operation is complete.

20. Follow the prompts, and click "OK" after the operation is complete.

21. Follow the prompts, and click "OK" after the operation is complete.

22. Follow the prompts, and click "OK" after the operation is complete.

23. Calibrating...

24. The calibration result is displayed, click "OK".

25. Follow the prompts, and click "OK" after the operation is complete.

26. Front radar dynamic calibration completed successfully.

27. Print the report information after calibration.
