FIAT Renegade 2014 Front Camera (HALF) Calibration

Mar 16,2023
Share :

Function Description:


The function of front camera calibration needs to be performed in the following cases


  • The front camera/ECU (HALF) has been replaced.
  • The front windshield has been replaced.
  • Structural changes/chassis adjustments.
  • The level sensor has been replaced.
  • There are related fault codes.



Operation guide:


1. Automatically identify the model Renegade through the ADAS calibration entrance VIN (If it is not recognized, the corresponding menu will be displayed, select manually and enter).


FIAT Renegade Front Camera Calibration 01


2. After selecting “ADAS Calibration Function”, click “Front Camera Calibration”.


FIAT Renegade Front Camera Calibration 02

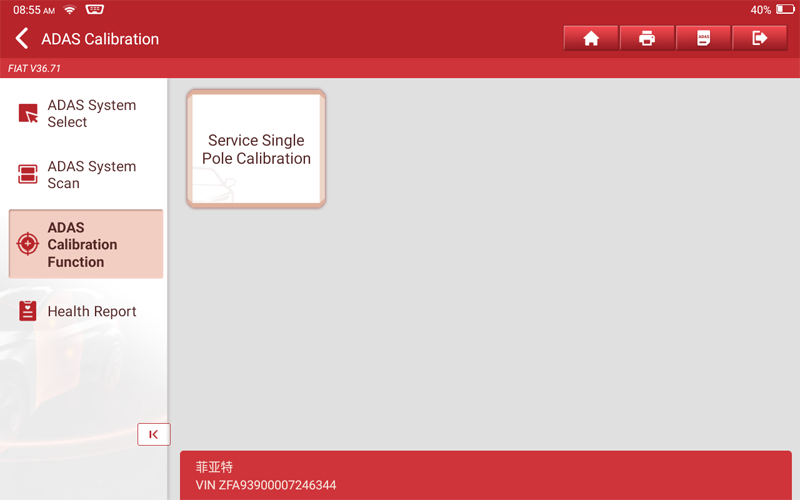

3. Select “Service Single Pole Calibration”.


FIAT Renegade Front Camera Calibration 03


4. Situations where the current function needs to be performed.


FIAT Renegade Front Camera Calibration 04


5. Preparations required to perform the current function.


FIAT Renegade Front Camera Calibration 05


6. Follow the prompts, after the operation is complete, click “Next Step”.


FIAT Renegade Front Camera Calibration 06


7. Follow the prompts, after the operation is complete, click “Next Step”.


FIAT Renegade Front Camera Calibration 07


8. Follow the prompts, after the operation is complete, click “Next Step”.


FIAT Renegade Front Camera Calibration 08


9. Follow the prompts, after the operation is complete, click “Next Step”.


FIAT Renegade Front Camera Calibration 09


10. Follow the prompts, after the operation is complete, click “Next Step”.


FIAT Renegade Front Camera Calibration 10


11. Follow the prompts, after the operation is complete, click “Next Step”.


FIAT Renegade Front Camera Calibration 11


12. Follow the prompts, after the operation is complete, click “Next Step”.


FIAT Renegade Front Camera Calibration 12


13. Follow the prompts, after the operation is complete, click “Next Step”.


FIAT Renegade Front Camera Calibration 13


14. Follow the prompts, after the operation is complete, click “Next Step”.


FIAT Renegade Front Camera Calibration 14


15. Follow the prompts, after the operation is complete, click “Next Step”.


FIAT Renegade Front Camera Calibration 15


16. Follow the prompts, after the operation is complete, click “Next Step”.


FIAT Renegade Front Camera Calibration 16


17. Follow the prompts, after the operation is complete, click “Next Step”.


FIAT Renegade Front Camera Calibration 17


18. Follow the prompts, after the operation is complete, click “Next Step”.


FIAT Renegade Front Camera Calibration 18


19. Follow the prompts, and after the operation is complete, click the Calibration button to execute the calibration function.


FIAT Renegade Front Camera Calibration 19


20. Calibration complete.


FIAT Renegade Front Camera Calibration 20


21. Turn off the ignition, wait for the progress bar (or countdown) to end, and then turn on the ignition.


FIAT Renegade Front Camera Calibration 21


FIAT Renegade Front Camera Calibration 22


22. Print the report information after calibration.


FIAT Renegade Front Camera Calibration 23
