ALFA ROMEO Giulia 2015 Front Camera (HALF) Calibration

Function Description:

The function of front camera calibration needs to be performed in the following cases

• The front camera/ECU (HALF) has been replaced.
• The front windshield has been replaced.
• Structural changes/chassis adjustments.
• The level sensor has been replaced.
• There are related fault codes.

Operation guide:

1. Automatically identify the model Giulia through the ADAS calibration entrance VIN (If it is not recognized, the corresponding menu will be displayed, select manually and enter).

2. After selecting ADAS Calibration Function, click Front Camera Calibration.

3. Select Target Calibration.

4. Situations where the current function needs to be performed.

5. Click Continue to execute the next step.

6. Preparations required to perform the current function.

7. Follow the prompts, after the operation is complete, click Next Step.

8. Follow the prompts, after the operation is complete, click Next Step.

9. Follow the prompts, after the operation is complete, click Next Step.

10. Follow the prompts, after the operation is complete, click Next Step.

11. Follow the prompts, after the operation is complete, click Next Step.

12. Follow the prompts, after the operation is complete, click Next Step.

13. Follow the prompts, after the operation is completed, click the calibration button to perform the calibration function.

14. Clicking on “Picture” will display a demonstration of measuring tire height, and clicking on “Next Step” will execute the next step.

Tire Height Demonstration.

15. Input the height of the four tires according to the prompts (input the metric system in the front box, and the imperial system in the back box, and the unit on the other side will be automatically displayed when you input one side), and click "Next Step" after the input is completed.

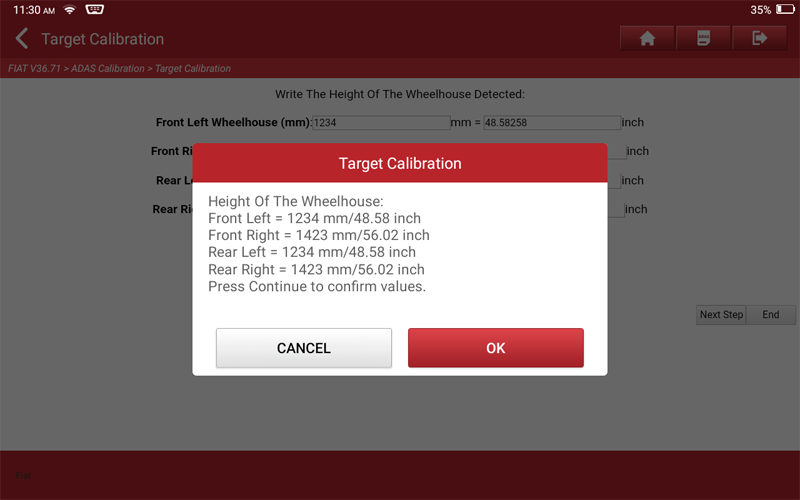

16. Display the tire height entered in the previous step, click "OK" after confirming that it is correct, and execute the next step.

17. Follow the prompts, enter the distance data from the target, and click "Next Step".

18. Calibration complete.

19. Turn off the ignition, wait for the progress bar (or countdown) to end, and then turn on the ignition.

20. Print the report information after calibration.
