FIAT Toro 2016 Front Camera (HALF) Calibration

Mar 24,2023
Share :

Function Description:


The function of front camera calibration needs to be performed in the following cases



  • The front camera/ECU (HALF) has been replaced.
  • The front windshield has been replaced.
  • Structural changes/chassis adjustments.
  • The level sensor has been replaced.
  • There are related fault codes.



Operation guide:


1. Automatically identify the model Toro through the ADAS calibration entrance VIN (If it is not recognized, the corresponding menu will be displayed, select manually and enter).


FIAT Toro 2016 Front Camera Calibration 01

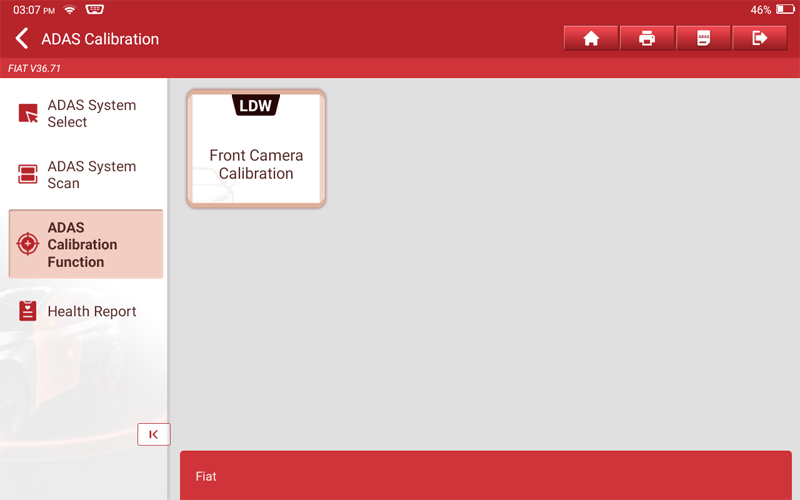

2. After selecting “ADAS Calibration Function”, click “Front Camera Calibration”.


FIAT Toro 2016 Front Camera Calibration 02

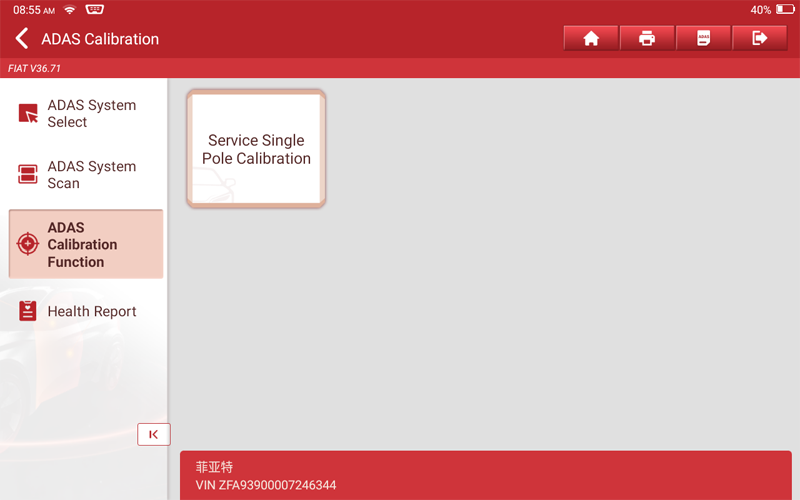

3. Select “Service Single Pole Calibration”.


FIAT Toro 2016 Front Camera Calibration 03

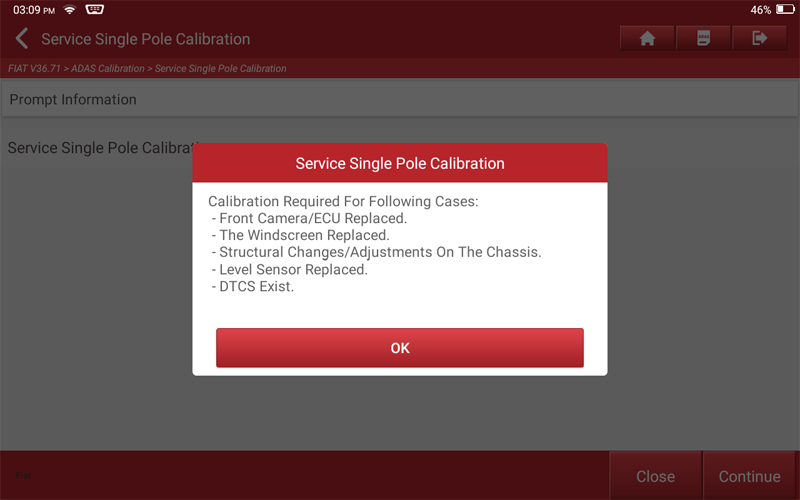

4. Situations where the current function needs to be performed.


FIAT Toro 2016 Front Camera Calibration 04

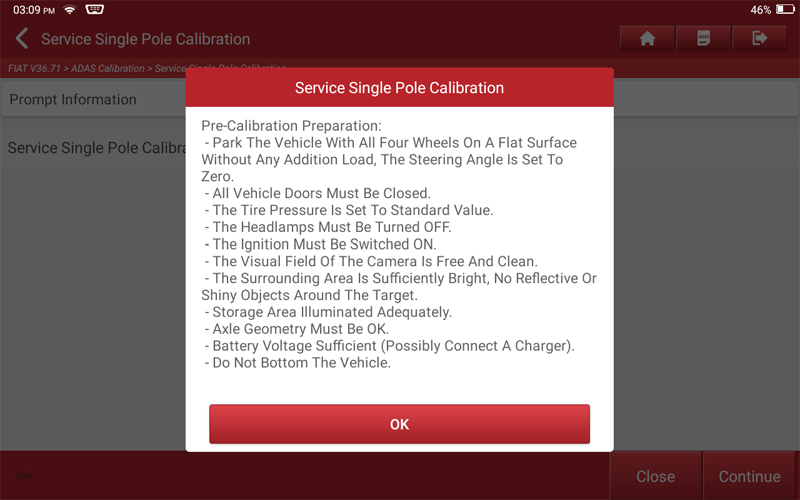

5. Preparations required to perform the current function.


FIAT Toro 2016 Front Camera Calibration 05


6. Please follow the prompts carefully, and click "Next".


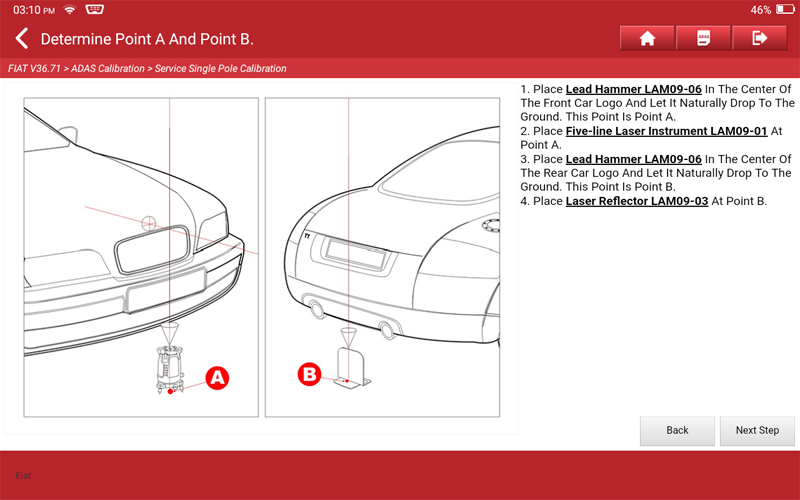

FIAT Toro 2016 Front Camera Calibration 06


7. Please follow the prompts carefully, and click "Next".


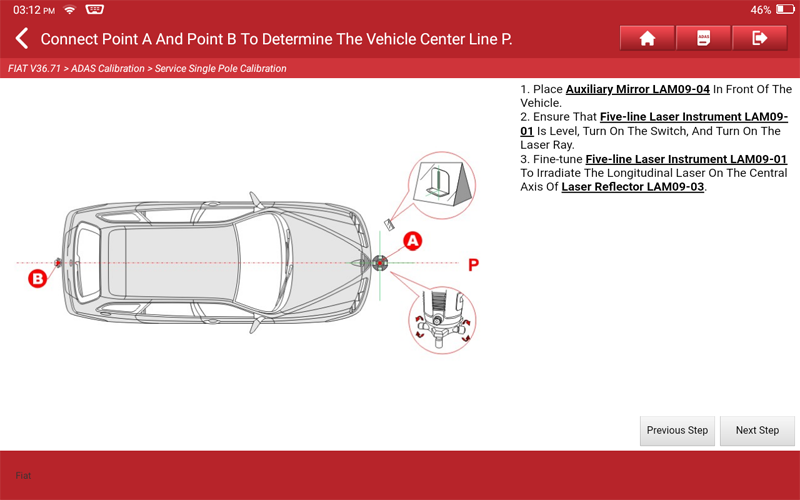

FIAT Toro 2016 Front Camera Calibration 07


8. Please follow the prompts carefully, and click "Next".


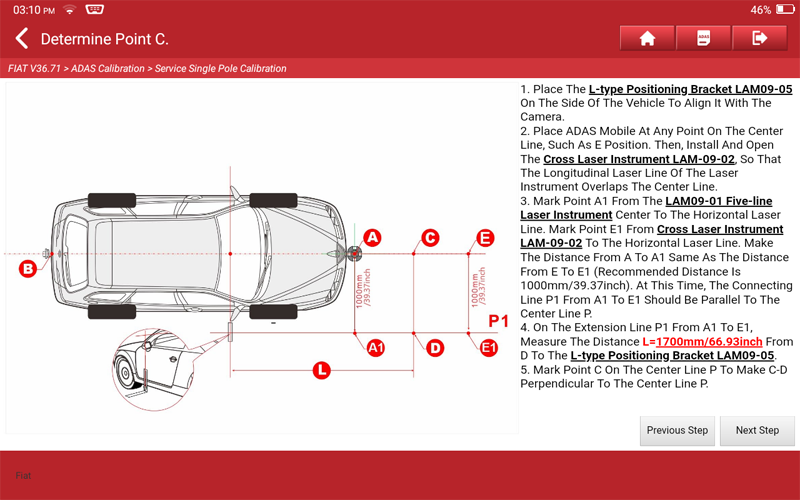

FIAT Toro 2016 Front Camera Calibration 08


9. Please follow the prompts carefully, and click "Next".


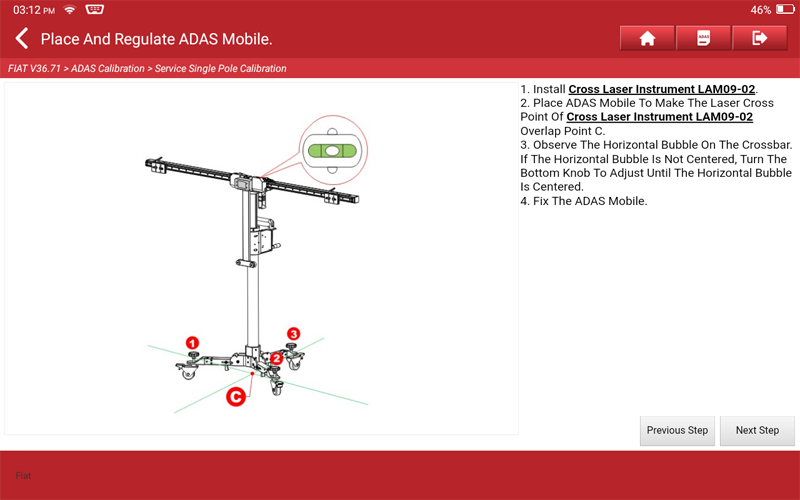

FIAT Toro 2016 Front Camera Calibration 09


10. Please follow the prompts carefully, and click "Next".


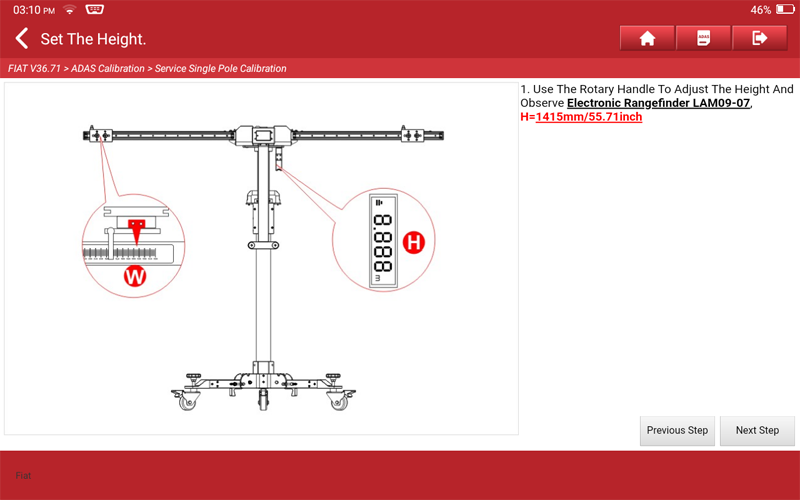

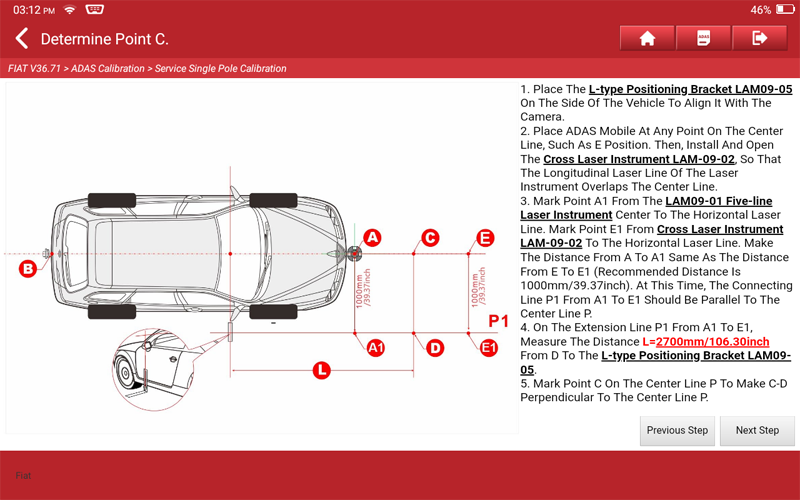

FIAT Toro 2016 Front Camera Calibration 10


11. Please follow the prompts carefully, and click "Next".


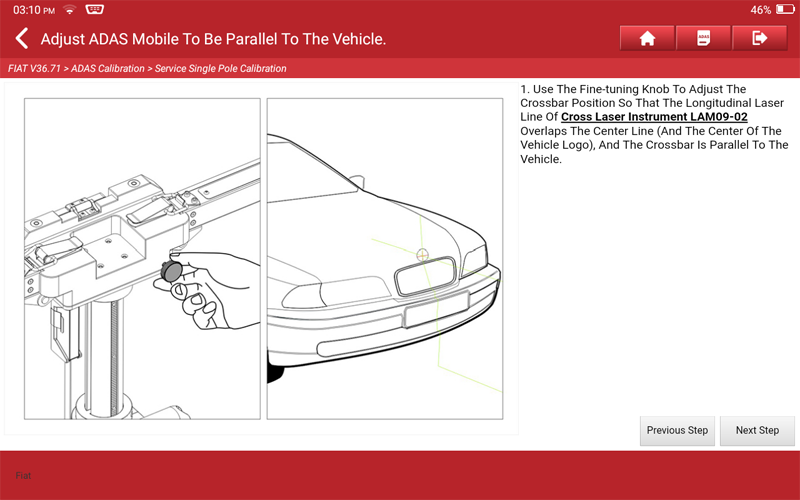

FIAT Toro 2016 Front Camera Calibration 11


12. Please follow the prompts carefully, and click "Next".


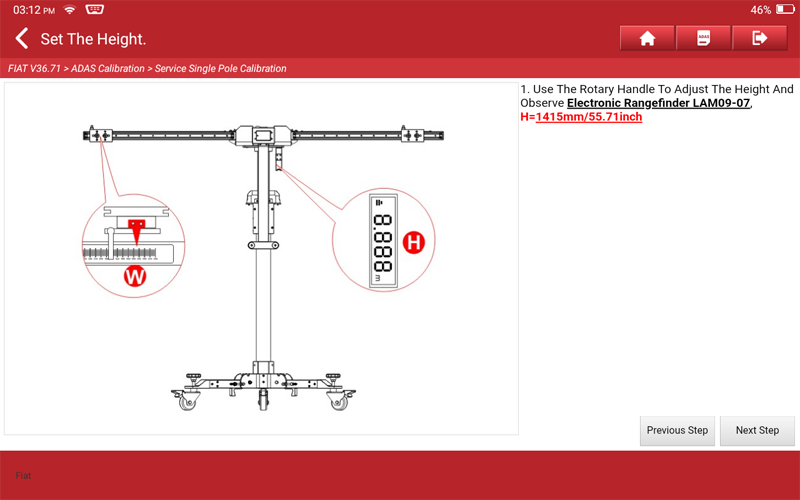

FIAT Toro 2016 Front Camera Calibration 12


13. Please follow the prompts carefully, and click "Next".


FIAT Toro 2016 Front Camera Calibration 13


14. Please follow the prompts carefully, and click "Next".


FIAT Toro 2016 Front Camera Calibration 14


15. Please follow the prompts carefully, and click "Next".


FIAT Toro 2016 Front Camera Calibration 15


16. Please follow the prompts carefully, and click "Next".


FIAT Toro 2016 Front Camera Calibration 16


17. Please follow the prompts carefully, and click "Next".


FIAT Toro 2016 Front Camera Calibration 17


18. Please follow the prompts carefully, and click "Next".


FIAT Toro 2016 Front Camera Calibration 18


19. Follow the prompts, and after the operation is completed, click the calibration button to execute the calibration function.


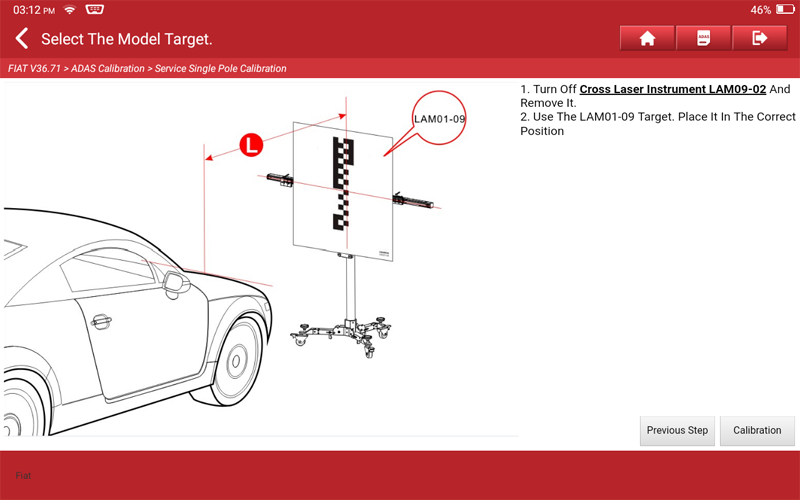

FIAT Toro 2016 Front Camera Calibration 19


20. Calibration complete.


FIAT Toro 2016 Front Camera Calibration 20

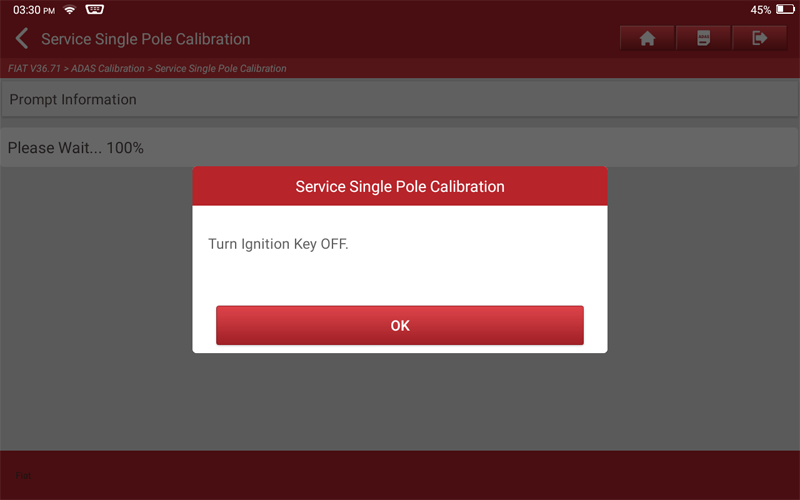

21. Turn off the ignition switch, wait for the progress bar (or countdown) to end, and then turn on the ignition switch.


FIAT Toro 2016 Front Camera Calibration 21


FIAT Toro 2016 Front Camera Calibration 22

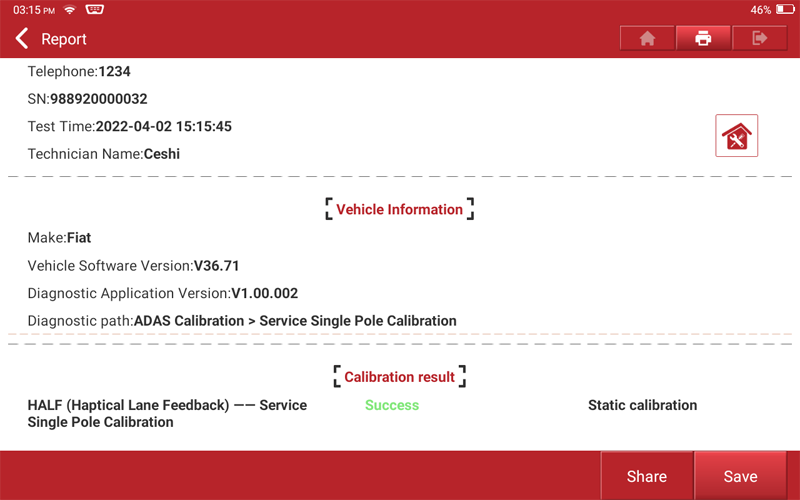

22. Print the report information after calibration.


FIAT Toro 2016 Front Camera Calibration 23
