HYUNDAI SCC Alignment

Background

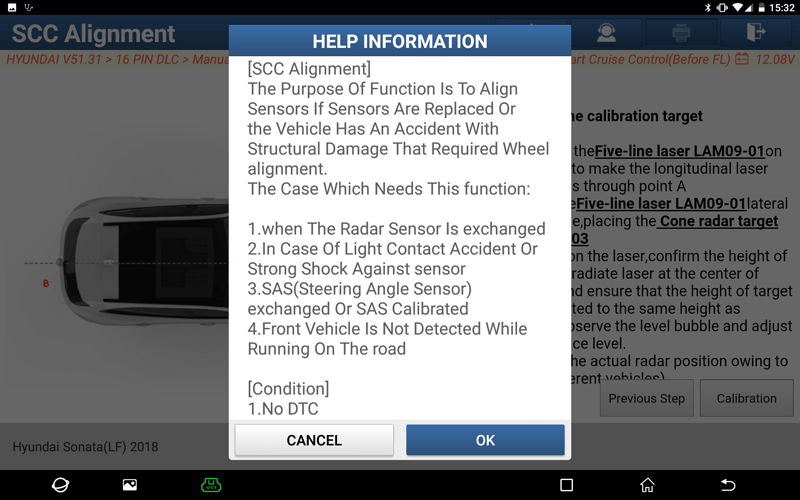

Vehicle components are overhauled and replaced as follows:

(1) Replace the radar sensor.

(2) An accident occurs or the sensor is subjected to a strong impact.

(3) SAS (angle sensor) replacement or calibration.

(4) The vehicle ahead is not detected when driving on the road.

Precautions

(1) There is no obstacle between the target board and the vehicle.

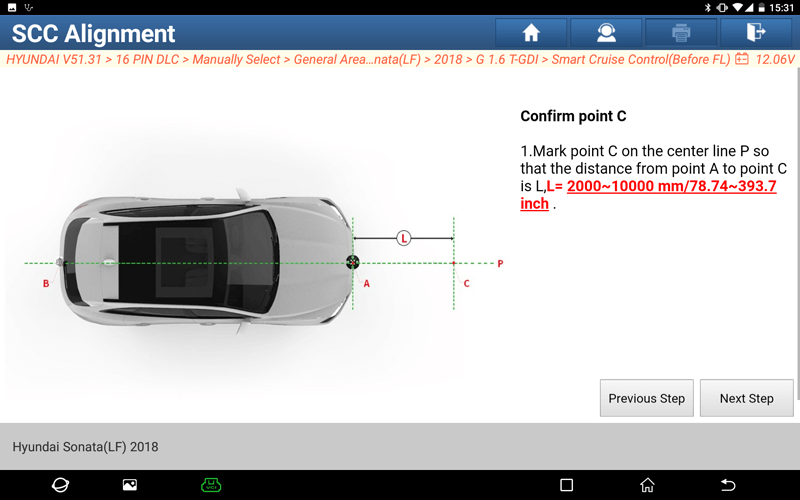

(2) A distance of 2-10 meters must be maintained between the radar sensor and the target board.

(3) The center tolerance must be kept within 5mm (from the center of the radar sensor to the center of the target board).

(4) After the alignment fails, the light is on.

Applicable models:

HYUNDAI -> General -> Sonata(LF) -> 2018 -> G 2.0 T-GDI

Operation steps

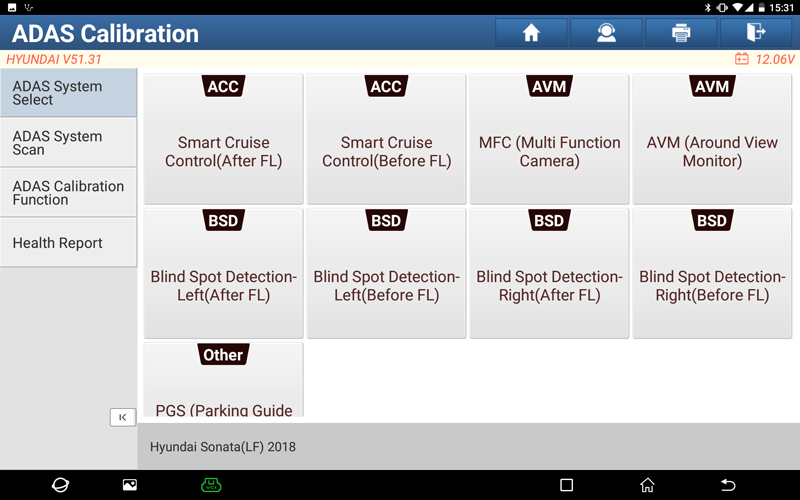

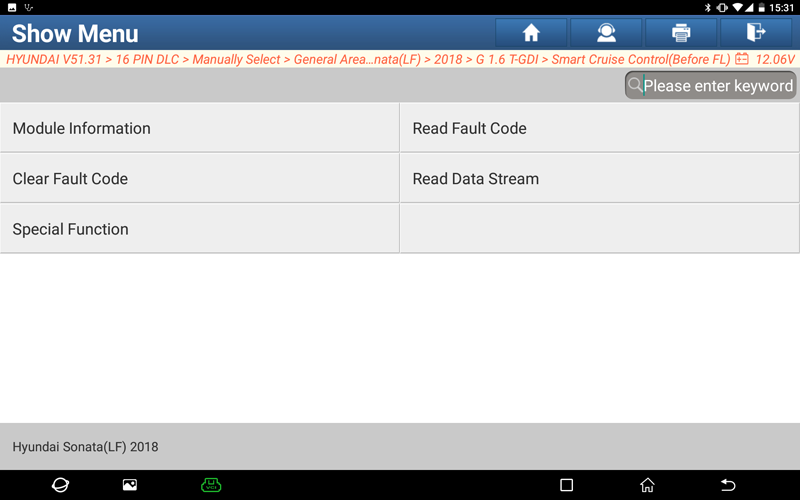

1. Select the path: HYUNDAI -> General -> Sonata(LF) -> 2018 -> G 2.0 T-GDI -> System Selection, the system list is as follows:

2. Select Smart Cruise Control -> Special Function.

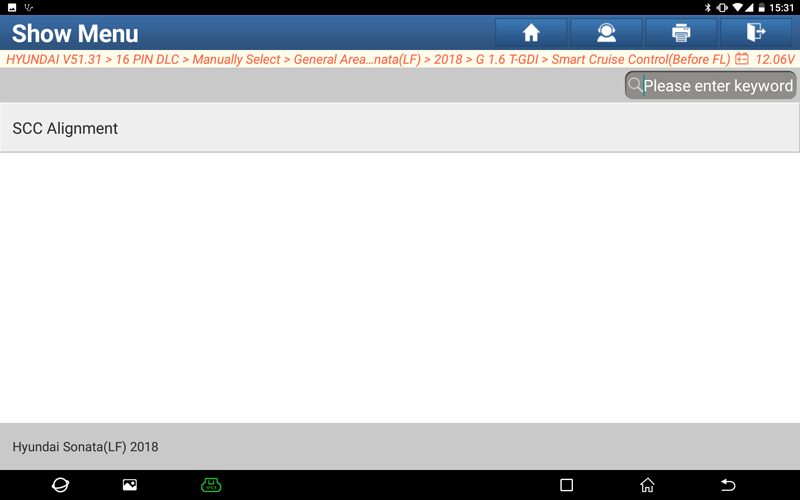

3. Select SCC Alignment.

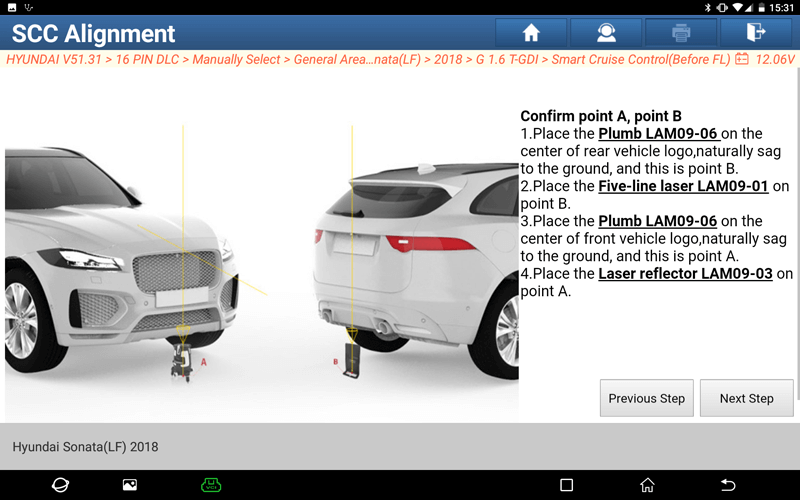

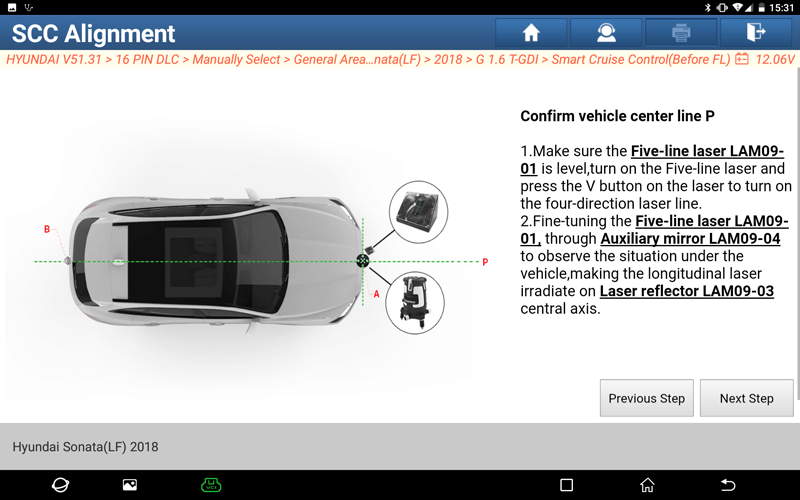

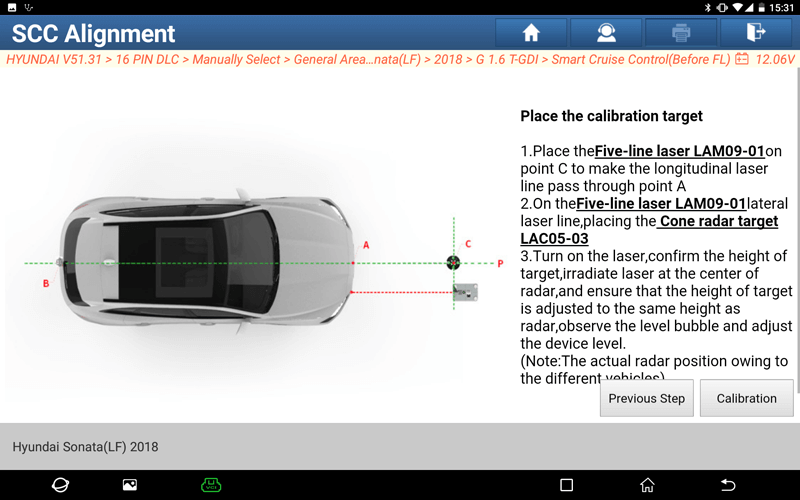

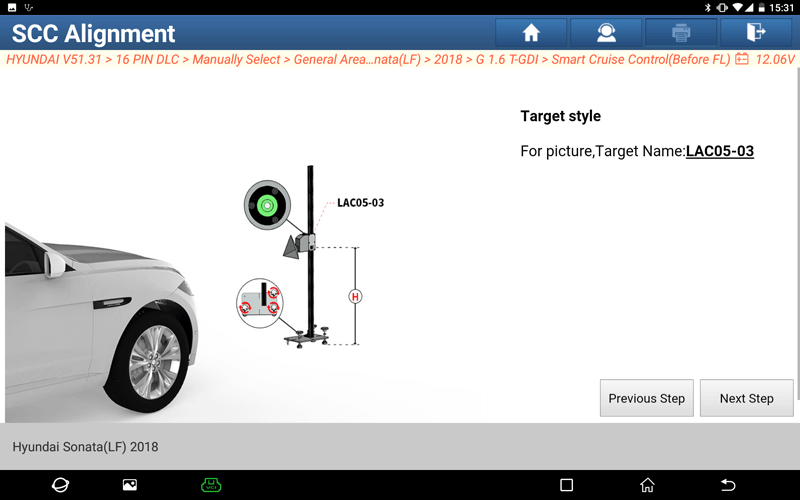

4. Place the target according to the instructions and click Calibration.

5.  After confirming that the conditions are met, select OK.

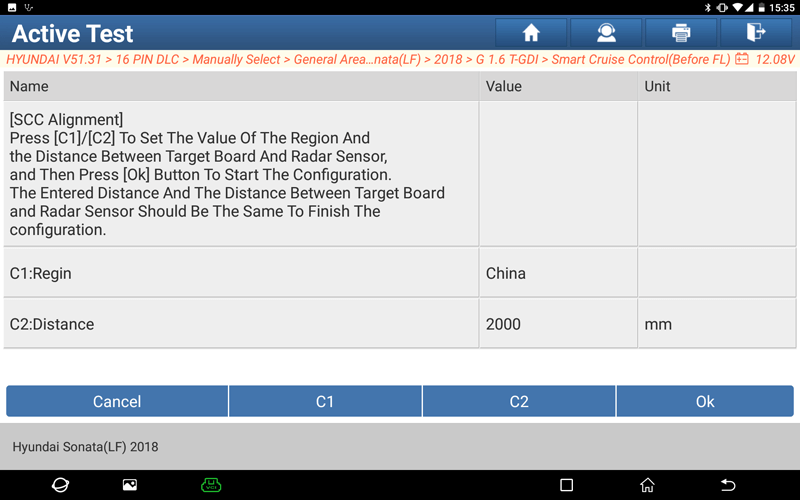

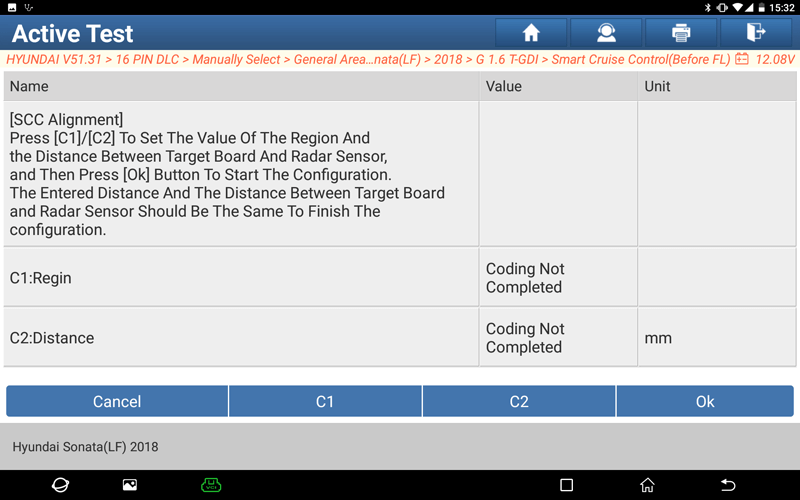

6. C1 selects the region, C2 enters the distance.

7. Take China as an example for the region, enter 2000 for the distance, and select OK.

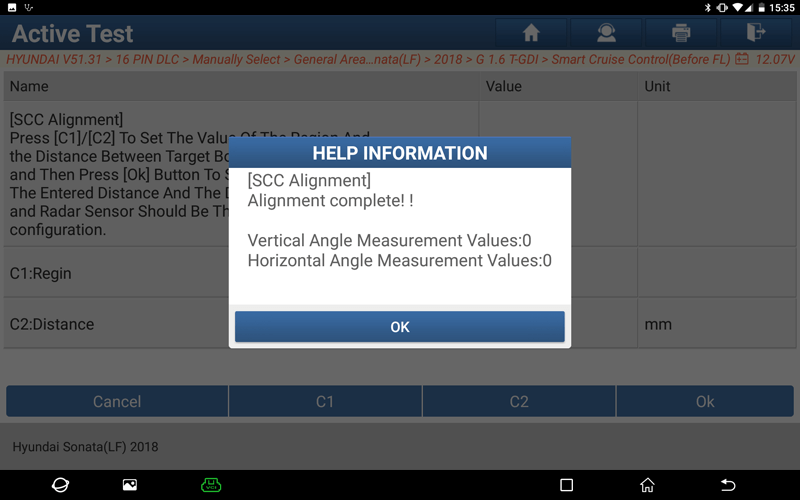

8. According to the actual situation of the car, there may be a waiting time for sending commands before this step. Finally, the function of this interface is displayed, select OK to exit.
