Understanding BMW ADAS Calibration in Depth: Ensuring Key to Safe Driving

Oct 19,2023
Share :

ADAS technology used in BMW

BMW uses advanced ADAS technology in its different models. Here are some common ADAS technologies found on BMW vehicles and their features and functions:

1. Automatic Emergency Braking (AEB): BMW's ADAS system can automatically identify potential collision risks and automatically initiate emergency braking if the driver fails to take action. This can help reduce the severity of an accident or prevent a collision from occurring.

2. Adaptive Cruise Control: BMW's adaptive cruise control system allows the vehicle to automatically adjust its speed based on the speed and distance of the vehicle ahead. This helps provide a more stable and comfortable driving experience on the highway.
3. Lane Keeping Assist: This technology helps the driver keep the vehicle in its lane and provides slight directional adjustments or alerts to ensure the vehicle remains on a safe trajectory.
4. Blind Spot Monitoring: BMW's Blind Spot Monitoring system monitors vehicles in the driver's blind spot and provides warnings to prevent collisions when changing lanes. This helps improve the driver's awareness of the surrounding environment and improves driving safety.

These systems help drivers improve their perception of the road environment and provide real-time driving assistance to ensure safer and more comfortable driving. Compared with competitors, BMW's ADAS system has significant advantages in accuracy, performance and reliability, providing drivers with a higher level of safety and driving comfort.

BMW ADAS calibration process

Generally, the following steps can be followed to perform ADAS calibration:

① Preliminary assessment and preparation: Technicians conduct a preliminary assessment of the vehicle and prepare professional tools and equipment for the calibration process.

② Use professional tools and techniques: They use professional calibration tools, such as laser calibrators and angle calibrators, to adjust the angle of the camera and calibrate the position of the sensor.

③ Strictly follow standards: Technicians strictly follow BMW's manufacturing standards and specifications to ensure the precision and accuracy of calibration.

④ System testing and verification: They test the system in the actual road environment to ensure that the ADAS system can accurately identify obstacles and respond appropriately.

⑤ Final recording and verification: Once the calibration is completed, they will record the details of the calibration and provide calibration certification documents, including calibration reports and records, for future maintenance and inspections.

Through this carefully designed process, drivers are provided with a safe and reliable driving experience. This rigorous calibration process is key to ensuring your vehicle maintains optimal performance and safety on the road.

Functionality of BMW electronics and sensors

BMW's ADAS system uses a variety of advanced electronic devices and sensors, including radars, cameras and laser scanners, which work together to provide accurate driving assistance functions and safety. Here's an explanation of how these devices and sensors function and how they work together:

1. Radar: Radar is a sensor that uses electromagnetic waves for detection and ranging. In BMW's ADAS system, radar can be used to measure the distance and speed of obstacles ahead and provide real-time data feedback. It helps with features like autonomous emergency braking, adaptive cruise control, and lane-keep assist.

2. Camera: The camera is a sensor used to capture images of the vehicle’s surroundings. In BMW's ADAS system, high-definition cameras can identify road signs, pedestrians, vehicles, obstacles, etc., and transmit this information to the vehicle's control unit for analysis and decision-making. It can support functions such as lane departure warning, traffic sign recognition and pedestrian detection.

3.  Laser scanners: Laser scanners can create accurate three-dimensional images of the surrounding environment by emitting a laser beam and measuring the time of its reflection. In BMW's ADAS system, laser scanners can help build high-precision environmental models, identify road geometry and the location of obstacles, and support functions such as automatic parking and traffic jam assistance.

These electronic devices and sensors exchange and integrate data through the vehicle's control unit, enabling complex environmental perception and vehicle control. Their collaborative work can provide drivers with accurate driving assistance functions such as automatic braking, lane keeping, adaptive cruise control and parking assistance, thereby improving overall driving safety and driving comfort. Through the collection and analysis of real-time data, BMW's ADAS system can quickly identify potential risks and take corresponding measures to reduce the possibility of accidents.

Common ADAS system failures in BMW

In the ADAS system of BMW vehicles, some common faults may occur. These faults will affect the normal function and performance of the system and require timely diagnosis and repair. Here are some common failures that can occur:

1. Sensor failure: The sensor is one of the core components in the ADAS system and may malfunction or malfunction. This may cause problems such as the camera being unable to recognize road signs or obstacles, and the radar being unable to accurately measure distance and speed.

2. Camera calibration offset: The offset in camera calibration may cause the ADAS system to be unable to accurately identify lane lines or pedestrians, thus affecting the normal operation of functions such as lane-keeping assist and pedestrian detection.

3. Software glitches: ADAS system software may experience glitches caused by programming errors or incorrect updates. This may affect the response speed, accuracy and stability of the system, leading to functional abnormalities or false alarms.

4. Calibration errors: There may be errors or inaccuracies in the calibration process of ADAS systems, causing the system to fail to correctly recognize road conditions or driving environments. This may cause instability or failure of functions such as automatic emergency braking and adaptive cruise control.

When faced with these faults, BMW owners should promptly seek diagnosis and repair from professional technicians at a BMW authorized service center. They can use professional diagnostic tools and calibration equipment to identify faults and perform corresponding repair measures to restore the normal functionality of the ADAS system. Timely maintenance and repairs ensure vehicle safety and performance levels meet standard requirements.

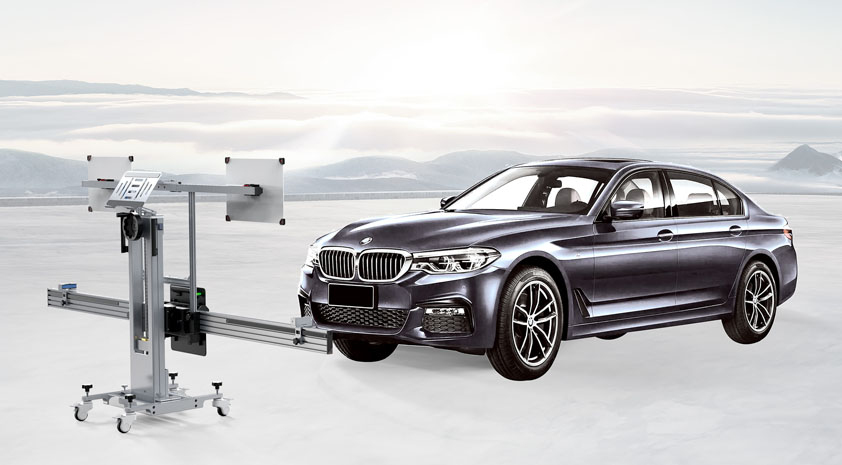

Tools for calibrating BMW ADAS systems

Calibrating the ADAS system of BMW vehicles requires the use of a series of professional tools to ensure accuracy and reliability. We provide you with the following calibration tools:
