AUDI Q8 2019 Night Vision Camera Calibration

Functional description:

The night vision camera needs to be calibrated when:

1) The 84 system has a fault code: B201000-No Basic Setting.

2) The night vision camera has been removed and installed or replaced.

Measured model:

2019 Audi Q8, VIN is: WAURGCF12KD046****

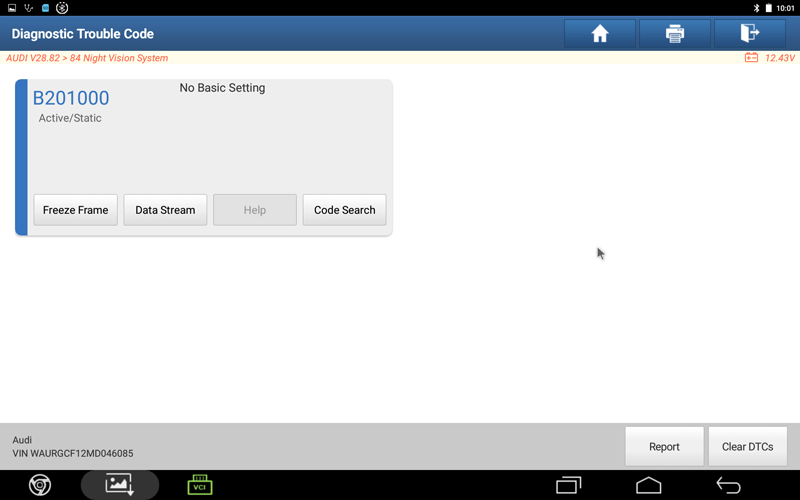

The following fault codes existed before the calibration of the example vehicle.

Operation steps：

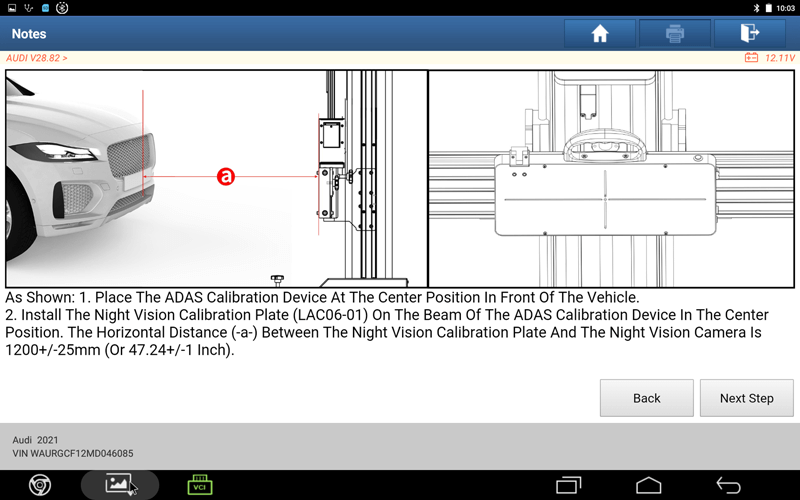

1. Automatic identification of model Q8 2019 through ADAS calibration entrance VIN.

2. Select [ADAS Calibration Function]→[Infrared Camera Calibration].

3. Select [84 Night Vision System].

4. After following the prompts, click [Next Step].

5. After following the prompts, click [Next Step].

6. After following the prompts, click [Next Step].

7. After following the prompts, click [Next Step].

8. After following the prompts, click [Next Step].

9. After following the prompts, click [Next Step].

10. After confirming that the preparations before calibration are correct. Click [Continue/Complete].

11. Then adjust the chassis to the standard height and fix the rear axle steering system, and click [Continue/Complete].

12. After switching the ignition switch once, click [Continue/Complete].

13. After operating as required, select -1- in the example (select the corresponding function according to the actual situation).

14. Then execute the calibration function, click [Continue/Complete].

15. The calibration tool is recognized, please wait a few seconds.

16. The calibration is successful, you can view the angle information, and then click [Continue/Complete].

17. Then the fault code [B201000-No Basic Setting] will be cleared.

18.  Calibration is finished, click [OK] to print the calibration report information.

19. Reports information after calibration.

20. Read the fault again, there is no more fault code: B201000-No Basic Setting.
