SUZUKI SWIFT 2017 Front Camera Calibration

Function Description:

The front camera needs to be calibrated in the following cases:

① The front camera/ECU has been replaced.

② The front windshield has been replaced.

③ Structural changes/chassis tweaks.

④ The level sensor has been replaced.

⑤ There are related fault codes.

Operation guide:

1. Automatically identify and enter through ADAS calibration entrance VIN.

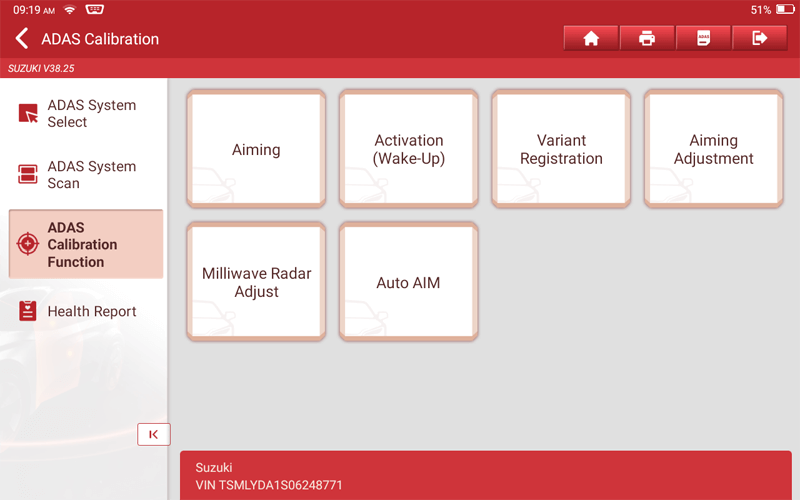

2. After selecting "ADAS Calibration Function", click "Aiming Adjustment".

3. Follow the prompts, and click "Next Step" after the operation is complete.

4. Follow the prompts, and click "Next Step" after the operation is complete.

5. After entering the specific value according to the prompt, click "Next Step".

6. Display the currently read information, click "Next Step" after confirming.

7. Follow the prompts, and click "Next Step" after the operation is complete.

8. At this time, dynamic calibration is required, follow the prompts, perform dynamic calibration, and click "Next Step".

9. When both "Aiming Completing Flag" and "Running Compensation Complete Flag" show completion, click "Next Step".

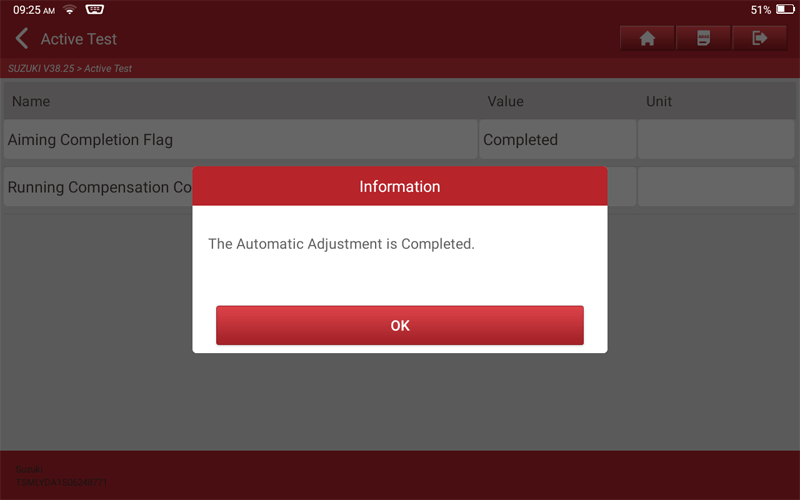

10. Prompt that the calibration is complete.

11. Print the report information after calibration.
