SmartSafe | VM13 Wireless Voltage Monitor Officially Released!

Dec 15,2023
Share :


VM13 is a high-precision, wide-range intelligent DC voltage measuring instrument that supports multi-channel wireless networking connections. Supports DC 0~1000V voltage measurement range with an accuracy of 0.5%FS.



- Multi-point voltage wireless collection, integrated display
- Support voltage change curve, high sampling rate
- Supports up to 48 channels of wireless network connections at the same time
- DC 0~1000V measurement, accuracy reaches 0.5%FS



Supports up to 48 channels of wireless networking


Through wireless data transmission of EV detection tools or smart terminals, VM13 can achieve a maximum of 48 channels of simultaneous wireless network connections.

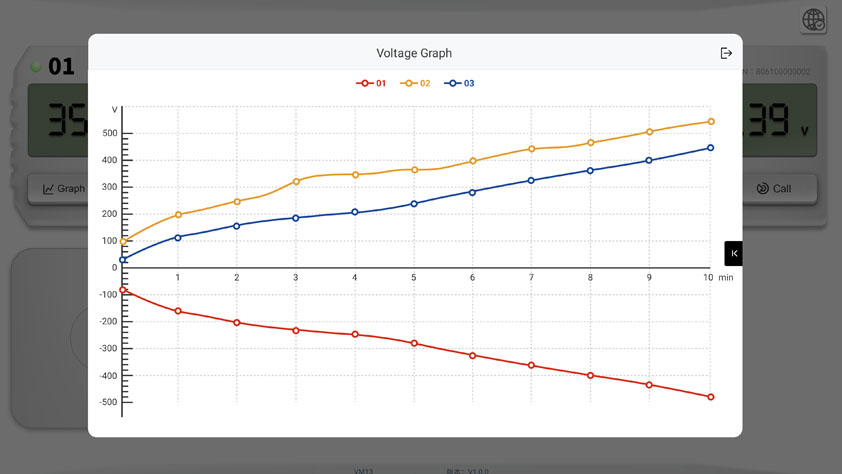

Voltage change curve


Through intelligent terminal equipment such as ST13, the voltage values of multiple devices/circuits under test can be displayed at the same time, and multi-channel voltage change curves can be viewed.

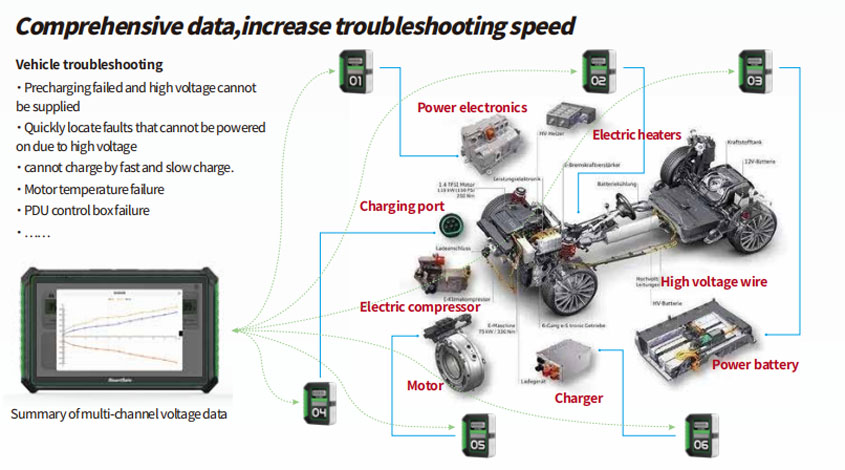

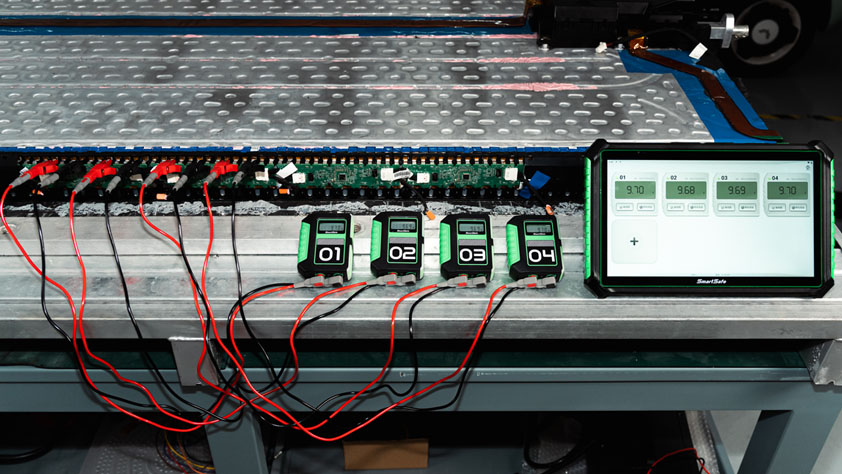

Multi-channel dynamic monitoring, rapid troubleshooting


Multi-channel dynamic monitoring, quick troubleshooting VM13 supports multi-channel network dynamic voltage collection, wireless transmission through intelligent connection terminals, real-time viewing of multi-channel voltage data summary, and helping maintenance and inspection personnel quickly complete vehicle troubleshooting.



Voltmeter reverse lookup


When multiple voltmeters are connected, VM13 supports reverse search of the voltmeter, with a buzzer reminder and indicator light flashing.

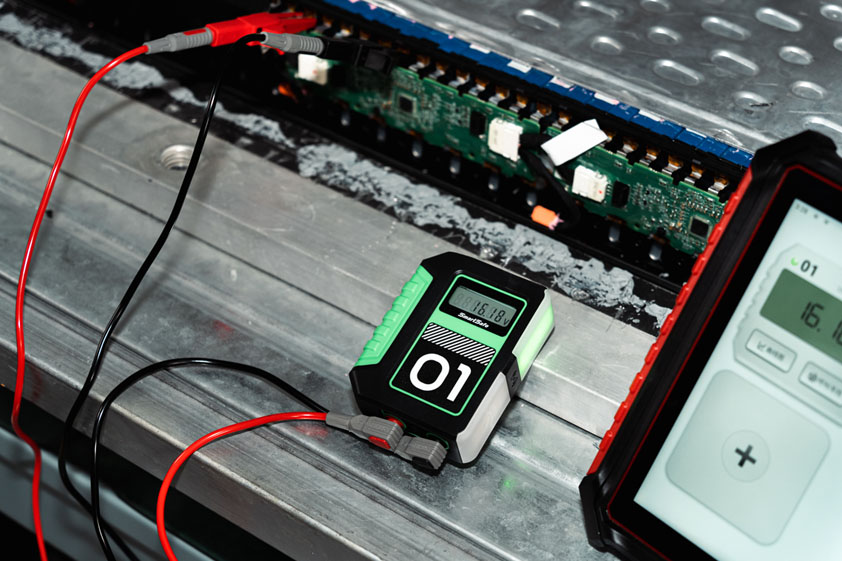

Can independently monitor voltage


VM13 has a built-in rechargeable lithium battery, which has a long battery life. It can be used as an independent voltmeter, supporting 0~1000V DC voltage measurement with a measurement accuracy of 0.5% FS. The voltage value is displayed in real-time through the digital screen of the fuselage.

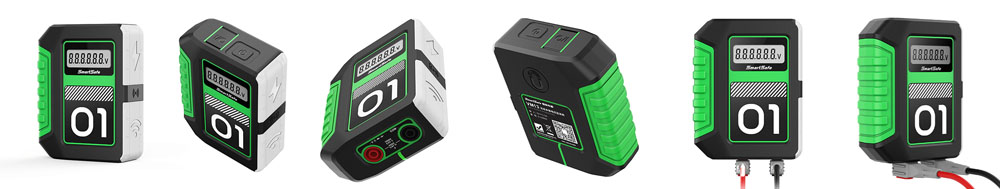

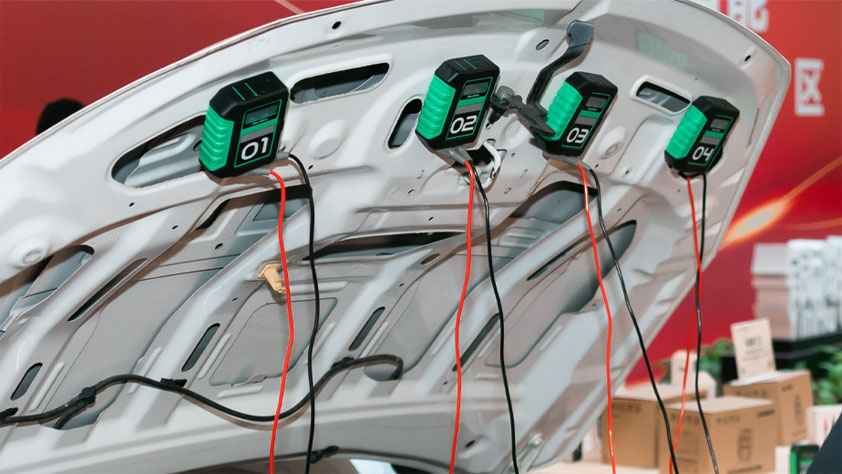

Built-in magnetic device


VM13 is compact and lightweight, with a built-in magnetic device that can be adsorbed on the surface of iron objects.



Quick connection method


When networking with terminal equipment such as ST13 and P13, you only need to scan the QR code of the VM13 body to quickly connect. If you want to connect multiple wireless voltage meters, you can also manually add them in batches.


Product Parameters


Measurement Range
DC 0~1000V
Battery
3000mAh/3.7V
Measurement Accuracy
0.5%FS
Charging Interface
Type C
Resolution
10mV
Working Temperature
0~45℃
Display Method
6-digit digital tube
Storage Temperature
-10~60℃
Communication Method
BT,Wi-Fi
Dimensions
78×100×31mm
