2017 Grand Caravan AHBM Camera Calibration

Jan 05,2023
Share :

Function Description:


The following situations require calibrating laser radar


  • The front camera/ECU has been replaced.
  • The front windshield has been replaced.
  • Structural changes/chassis adjustments.
  • The level sensor has been replaced.
  • There is an associated DTC.



Operation guide:


1. Automatically identify the car model through the ADAS calibration entrance VIN and enter the software.


Grand Caravan AHBM Camera Calibration 01


2. After selecting ADAS Calibration Function, click Other Calibration.


Grand Caravan AHBM Camera Calibration 02


3. Select Aim Test.


Grand Caravan AHBM Camera Calibration 03

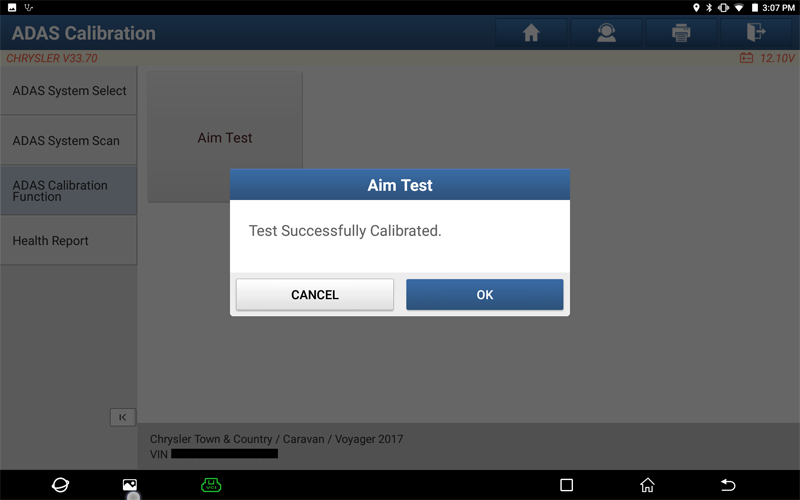

4. Follow the prompts to complete the function.


Grand Caravan AHBM Camera Calibration 04


Grand Caravan AHBM Camera Calibration 05


Grand Caravan AHBM Camera Calibration 06
